Acrylic Connectors For Padel Court Glass

Acrylic Connectors For Padel Court Glass
Product Introduction:
Product Introduction:
Material: ultra clear acrylic
Function: connect two padel glass
Type:Different types are available
Send Inquiry
Description
Technical Parameters

Products Description



Providing Reliable Glass Fixing and Impact Cushioning for Professional and Amateur Padel Courts



Padel court glass must withstand repeated impacts from high-speed balls (up to 160 km/h), continuous vibrations during use, and long-term outdoor environmental conditions.



In practical applications, the weakest link in the system is often not the glass itself, but the connection between the glass and the metal structure.

Acrylic connectors (also known as acrylic gaskets, buffer washers, or insulating pads) play a crucial role. They effectively protect the glass edges and openings, reduce stress concentration, prevent edge chipping, and minimize the risk of structural failure over long-term use.



Compared to ordinary plastic or rubber gaskets, acrylic connectors are specifically designed for transparent structural glass in sports settings. They offer high light transmittance, excellent UV resistance, and moderate elasticity, ensuring a stable installation without introducing additional stress points.



Why choose Acrylic connectors



Material Transparency Outdoor UV Life Moisture Stability Best for
Acrylic 92% >5 years without yellowing Excellent (non-hygroscopic) Standard padel courts
Nylon  Opaque / translucent 1–2 years then surface cracking Swells (moisture absorption → torque loss) Indoor / dry climates
Polycarbonate  88% but yellows over time 2–3 years then haze appears Good Extreme impact zones (rare)
Rubber / Silicone Opaque 1–3 years (ozone cracking) Good Temporary / low-budget courts



Products Type

Model 1 : Small size

Size: 160x50x10mm

Weight: 87g

Slot size: 20x8.5mm (M8 bolt) ; 20x10.5mm (M10 bolt)

Slot distance: 120mm (suitable for distance of hole center to glass edge about 58mm)

Acrylic padel glass connector

Model 2 : Bigger size

Size: 213x80x10mm

Weight: 176g

Slot size: 18x12mm (M10 bolts)

Slot distance: 133mm (suitable

for distance of hole center

to glass edge 64mm)

Big size padel court glass connector

Model 3: 90 Degree Acrylic Connector

Size:L140x W140x T10mm Slot size:

60x10.5mm ( for M10 bolt)

60x8.5mm (for M8 bolt)

For glass thickness 10–12 mm

Smooth polished edge

N.W. 226g/unit

90 degree acylic connector for padel courts



Common Problems

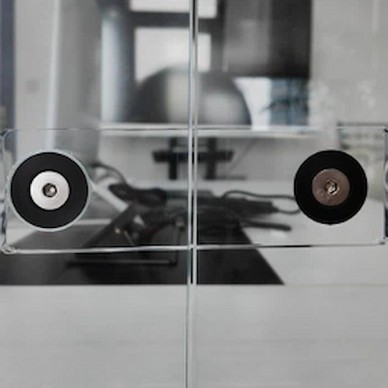

Different Acrylic Padel Glass Connectors

Common Problems

What is an acrylic connector?

A transparent buffer pad installed between padel court glass panels and the metal frame.

Why choose acrylic?

UV resistant, non-hygroscopic, high transparency, and suitable hardness.

How long does it last?

4–6 years outdoors. Inspect annually for yellowing or cracking.
